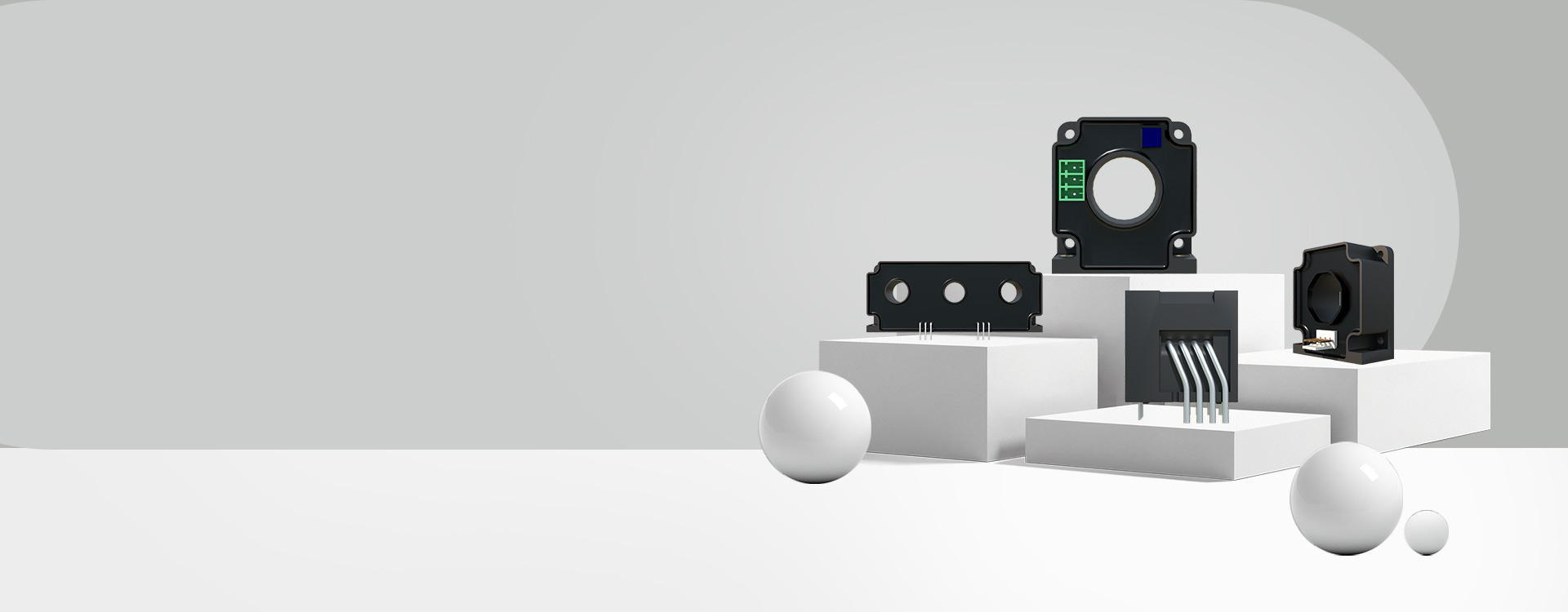

闭环电流传感器

产品特点产品选型应用领域

产品特点

响应时间快和带宽宽
适配大电流测量
低插入损耗
抗干扰能力强
线性度好、漂移小
功耗与成本平衡

产品选型

产品展示	产品系列	电源电压 Vc(V)	额定电流 Ipn(A)	峰值电流 Ipn(A)	额定输出 Vout/Lout@Ipn	精度 X@Ipn(%)	带宽 KHz	工作温度	安装方式	安装尺寸 mm
	HAC-PRD512	+5	0.5...3	0.8...4.8	2.5±1.2V	2	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRA02	±15	0.5...20	1.5...60	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRA05	±15	25/35	50/70	±25mA ±35mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-25PRC04 HAC-50PRC04	±15	25/50	55/100	±25mA ±50mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC- 25PRC104 HAC-50PRC204	±15	25/50	55/90	±12.5mA ±25mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRCQ1	±15	15....75	45....150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PCDD	±15	15...50	30..100	±12.5mA +25mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDD3.3	+3.3	06...50	12...100	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDD5	+5	06...50	6.6..55	2.5+2V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDD565	+5	06...50	18..120	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDHD	±15	15...50	30...100	+12.5mA ±25mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDHD3.3	+3.3	06...50	12....100	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PCDHD52	+3.3	06...50	6.6...55	2.5+2V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ8.5
	HAC-PAD	±15	25/50	50/100	±25mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PADSD3.3	+3.3	06...50	12....100	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PADSD5	+5	06...50	18...150	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PADSRD5	+5	06...50	18...150	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PADSRD3.3	+5	06...50	18...150	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSD5	+5	06...50	18...150	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSD52	+5	06...50	6.6..55	2.5±2V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSD3.3	+3.3	06...50	12...100	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSRD3.3	+3.3	06...50	12...100	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSRD52	+5	06...50	6.6..55	2.5±2V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PCDHSRD5	+5	06...50	18..150	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRLXH	±15	05...75	15..150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRLXA	±15	05...50	15...125	±20mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRP	±15	03....30	09...90	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRPH	±15	03....30	09...90	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRPSD3.3	+3.3	05..30	10...60	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPHSD3.3	+3.3	05..30	10...60	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPSD3.3	+3.3	05..30	5.5...33	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPHSD3.3	+3.3	05..30	5.5...33	1.65+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPSD5	+3.3	05..30	15...90	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPHSD5	+5	05..30	15...90	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPXH	±15	03...50	09...125	±4V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRPXD5	+5	03...50	06...100	2.5+1V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRXD	±15	03...50	09...150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRXN	±15	03...100	09...150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRXNP	±15	50...100	150...150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRSYH	±15	03...50	09...150	±4V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRSYHA	±15	05...50	10...150	±20mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRSYHD52	+5	03....50	3.3...55	2.5±2V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRSYHD565	+5	03....50	09...150	2.5+0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRHXSD5	+5	10...50	30..100	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRHXSD51	+5	10...50	20...100	2.5±1V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRHXSD52	+5	10...50	11...55	2.5+2V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PRLAH	±12...±15	25...100	75...280	±25mA ±50mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRLASD5	+5	50...100	160...250	2.5±0.625	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRLSRDO8	+5	06...50	15...125	2.5±0.8V	0.5	DC~100 (-3dB)	-40~+105	PCB
	HAC-PWAP	±12...±18	50...200	150...600	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWAP2	±12...±18	50...125	50...200	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWAPF	±12...±18	100...200	300...600	±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PADP	±12...±18	50...200	150...600	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PADPF	±12...±18	50...200	150...600	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PCAPD	±12...±18	100...230	300...600	±50mA ±100mA ±115mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	Φ12.6
	HAC-PWAPSD51	±12...±18	50...200	50...400	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWAPSD565	+5	50...150	150...450	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWAPSD52	+5	50...150	55...165	2.5±2V	0.5	DC~100 (-3dB)	-40~+85	PCB	16.2x10.5
	HAC-PWAPSRD51	+5	50...150	50...300	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	PCB	16.2x10.5
	HAC-PWAPSRD565	+5	50...150	150...450	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWAPSRD52	+5	50...150	55...165	2.5±2V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWLP	±12...±18	100...200	300...600	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWLP2	±12...±18	50...125	150...200	±50mA ±100mA ±125mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	16.2x10.5
	HAC-PWLPD	±12...±18	125..200	500...600	±62.5mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	15x10.5
	HAC-PWLPD-1	±12...±18	125..200	500...600	±62.5mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB	15x10.5
	HAC-400SWBSD	±12...±18	400	900	±133.3mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBS	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBSW	±12...±18	50...300	150...600	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBA	±12...±18	50...200	50...400	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBR	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBDS	±12...±18	50...300	150...600	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBDS4V	±12...±18	50...300	150...900	±4V	0.5	DC~100(-3dB) (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBDR	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBXS	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBXR	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBP	±12...±18	50...300	150...900	±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	20.5x10.5
	HAC-SWBPRD51	+5	50...200	100...360	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SWBPRD565	+5	50...200	150..360	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SWF	±15...±24	200...500	600...1500	±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SWFR	±15...±24	200...500	600...1500	±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SCE	±15	50...300	120...500	±4V	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SCEMA	±12...±18	50...300	150...900	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SCECH	±12...±18	25...100	75...300	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-SCEC	±12...±18	25...100	75...300	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-SCEH	±12...±18	25...200	75...600	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SCEHC	±12...±18	25...200	75...600	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-25SCEHD	±8	25	50	±25mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-PCESD5	+5	10...100	20...200	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-PCECSD5	+5	10...100	20...200	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-PCECSD52	+5	10...100	22...220	2.5±2V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-PCECSD562	+5	10...100	30...300	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-PCESD52	+5	10...100	11...110	2.5±2V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-PCESD565	+5	10...100	30...300	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-SCECS5RD5	+5	10...100	20...200	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-PCEP3	±12...±18	25...200	75....600	±25mA ±50mA ±100mA	0.5	DC~100 (-3dB)	-40~+85	穿孔&PCB
	HAC-SCU	±12...±18	100...400	300...900	±100mA ±133.3mA ±150mA	0.5	DC~100 (-3dB)	-40~+85	穿孔
	HAC-SADAH	±12...±18	50...300	150..900	±50mA ±100mA ±150mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SADASD51	+5	10...200	20...400	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SADASD5	+5	10...200	20...400	2.5±1V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SADASD52	+5	0.5...100	0.55...110	2.5±2V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SADASD565	+5	10...150	32...450	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SCLD /HAC-SCLR	±12...±18	50...300	150..700	±50mA ±100mA ±150mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SCLTAR5V-1	±15	50...400	75...580	±5V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SCLTAR5V	±15	50...400	75...580	±5V	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-SCLDA1 /HAC-SCLDA2	±12...±18	50...300	150...900	±50mA ±100mA ±150mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-1000SCSP	±15...±24	1000	1500	±200mA	0.5	DC~100 (-3dB)	-40~+85	穿孔	Φ20.2
	HAC-PRCASRD5	+5	6...50	20...150	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	PCB
	HAC-PRCKSRD5	+5	6...50	20...150	2.5±0.625V	0.5	DC~100 (-3dB)	-40~+85	PCB
